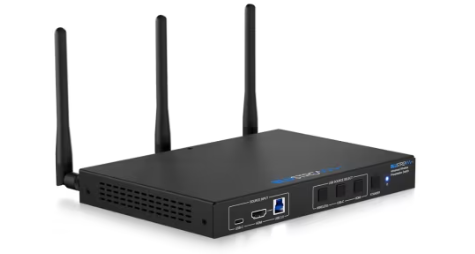

WMF72

Wireless Multi-Format Switch

Available Colours
Black matt
  • 4K multi-format
  • Multi-view presentation switch
  • HDMI, USB-C, AirPlay, Miracast®,
  • Chromecast®
  • Dual HDMI output
  • In-built video scaler
  • Localised 2.4G/5G WiFi hotspot
  • Dual LAN connection
  • RRP: $2,399.00

The WMF72 is an advanced 4K multi-format presentation switch featuring wired HDMI and USB-C, AirPlay, Miracast® and Chromecast® inputs to dual HDMI outputs.

The WMF72 provides enhanced features including dual HDMI output for mirrored or managed source control with multiview presentation, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection. The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.

The WMF72 is also compatible with Blustream WMF-USBC-D and WMF-HDMI-D plug & play wireless dongles, providing an ideal BYOD solution for your boardroom, classroom or huddle-space application.

• 4K multi-format multi-view presentation switch
• Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs
• Dual HDMI output supports mirror or desktop extension for managed soure control within advanced video conferencing set-ups
• Multiview presentation with up to 5 concurrent video signals and configurable screen layout
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging
• HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection
• Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz)
• Dual LAN connection for integration to existing network infratructures
• Supports USB camera and MIC over WiFi up (1080p 30Hz)
• Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®*
• Audio breakout to balanced / unbalanced analogue L/R audio
• Web interface module for control and configuration of switch
• OSD control with preview function
• Whiteboard and screen overlay annotation feature
• Control via front panel, RS-232 and TCP/IP with manual or auto source selection



*Miracast touch-back compatibility subject to Windows features
