HEX150CS-KIT

HDBaseT CSC Extender Kit - 150m

Available Colours
Black matt
  • HDBaseT CSC Extender Kit - 150m
  • Supports HDMI2.0 4K60Hz 4:4:4, 100m
  • Bi-directional IR, RS-232, POH/PoE
  • 1x HDMI input, 1x output, 1x Loop
  • EDID Management
  • Coaxial & analog L/R audio breakout
  • HDCP 2.2 compliant

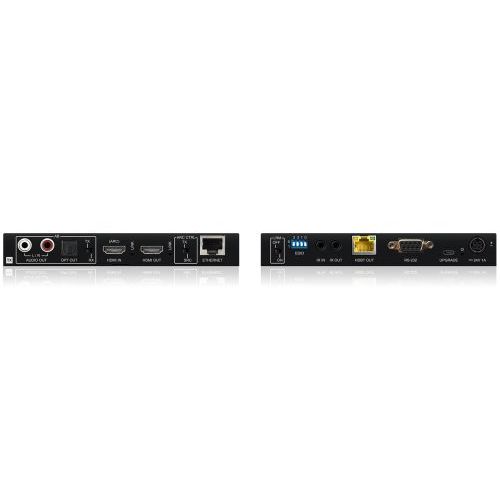

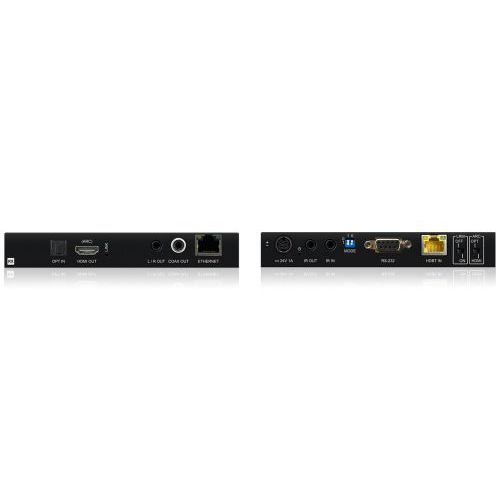

  • Inc 1x HEX150CS-RX + 1x HEX150CS-TX
  • RRP: $1,499.00

Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility.

The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion.

The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoC up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K @ 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• HDMI loop out on Transmitter
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
• Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 10/100BaseT Ethernet pass-through
• Bi-directional IR & RS-232 pass-through
• Supplied with Blustream 5V IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Advanced EDID management
• HDCP 2.2 support
