The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

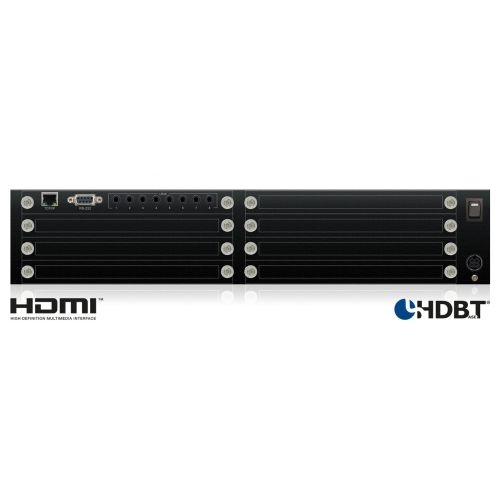

• Custom Pro Matrix Hub with 8 x modular bays for population of control & input / output boards
• Up to 8 x video inputs and 8 x video outputs can be achieved using Custom Pro boards
• 8 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Control of Matrix via front panel, IR, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards
• Web interface module for control and configuration of Matrix
• 3rd Party drivers available for major home control brands
• Advanced EDID management
• HDCP 2.2 Compliant
