Built on the foundation of our existing ACM platform, the ACM1000 continues to deliver the powerful core functionality our AV over IP customers rely on every day. These include one-touch configuration, intuitive drag-and-drop control via the web interface, and fully independent routing of video, audio, serial, IR, USB/KVM, and CEC signals.

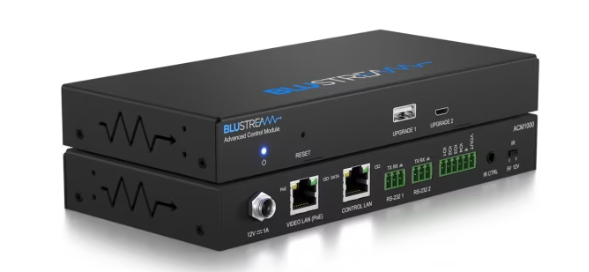

The new ACM1000 introduces a complete rebuild of both the control module hardware and supporting management software. Powered by a quad-core processor, this next-generation platform unlocks a number of new intuitive features including 24/7 scheduling, enhanced source and display control, simultaneous switching, advanced presets, and pre-configured macro control. Together, these enhancements deliver greater automation, faster workflows, and a more intelligent control experience across the entire AV system.
• Web interface module for configuration and control of Blustream AV over IP systems
• Intuitive 'Drag & Drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of video, audio, IR, RS-232, USB/KVM, and CEC (AVoIP platform dependent)
• Auto system configuration using in-built 'Setup Wizard'
• Dual RJ45 LAN connections to bridge business / home network to AV over IP video distribution network, resulting in:
- Better system performance as network traffic is separated (different networks, or VLAN's)
- No advanced network setup required
- Independent IP address per LAN connection
- Allows for simplified TCP / IP control of AV over IP system
• Dual RS-232 ports for control of the AV over IP system, and passthrough of control commands to remote third party devices
• 5V/12V IR integration for control of AV over IP system
• Configurable GPIO ports for integration with 3rd party products
• Direct control command processing allowing IP to IR, serial or CEC to any end point in the system
• GUI based source and display remote for direct control using IR, serial and CEC
• 24/7 scheduling functionality
• Macro functionality for recall of multiple commands from a schedule, GPIO, or API command
• Grouping of receivers for instant recall of input switching to multiple displays
• Preset functionality for recalling set I/O's from a single GUI button press or API command
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should AV over IP network not support PoE
• 3rd Party drivers available for major control brands
