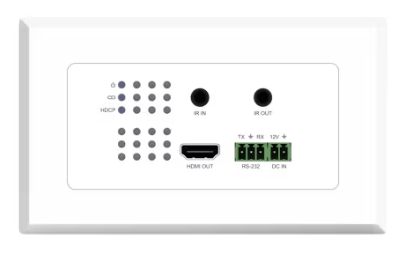

Our HEX11WPW-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0).
The HEX11WPW-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports CEC and RS-232 pass through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
• Compatible with all Blustream HDBaseT™ transmitter / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
