DA11ABLWPEU V2

Bluetooth & Analogue Audio Dante

Available Colours
White
  • Dante® network wall plate interface
  • Converts 2ch Bluetooth
  • Converts 2x Dante® audio
  • Adjustable input sensitivity
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE
  • White magnetic faceplate
  • In-built web-GUI for configuration
  • RRP: $999.00

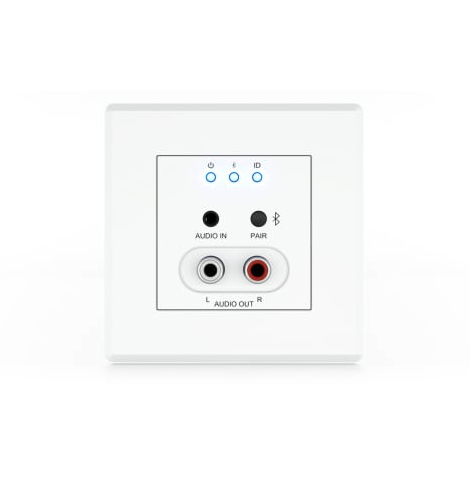

The DA11ABL-WP-EU-V2 is a multi-input / output wall plate to convert Bluetooth and analogue audio within a digital Dante® networked audio system. The DA11ABL-WP-EU-V2 converts 2 input channels of Bluetooth or unbalanced audio to Dante® digital audio, and 2 channels of Dante® audio to 2 x output channels of unbalanced audio.

The DA11ABL-WP-EU-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility. The DA11ABL-WP-EU-V2 is the ideal BYOD interface to allow any Bluetooth device to stream audio wirelessly to a Dante® audio system.

• Dante® network wall plate interface for Bluetooth and analogue L/R audio inputs, and L/R audio outputs
• Converts 2ch Bluetooth, or un-balanced audio sources to Dante® audio
• Converts 2x Dante® audio channels to un-balanced audio outputs
• Adjustable input sensitivity from +24dBu to -28dBV and output gain from +20dBu to -28 dBV via web GUI or API
• Dante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE
• White magnetic faceplate surround allowing for both UK & EU backbox compatibility
• In-built web-GUI for configuration and control
