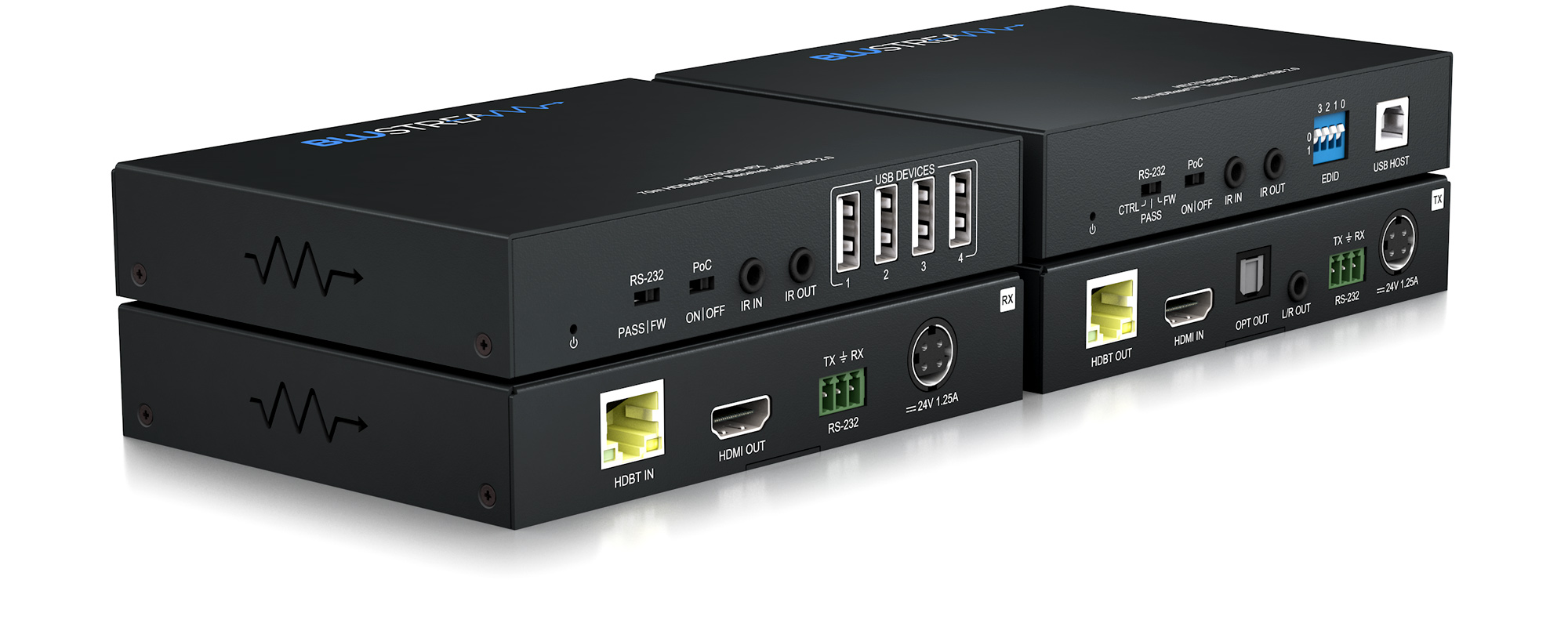

The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps
• USB Type-A connections support 5V 500mA output per port
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions
• Bi-directional IR pass-through
• Bi-directional RS-232 pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end
• HDCP 2.2 compliant with advanced EDID management
• HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently
