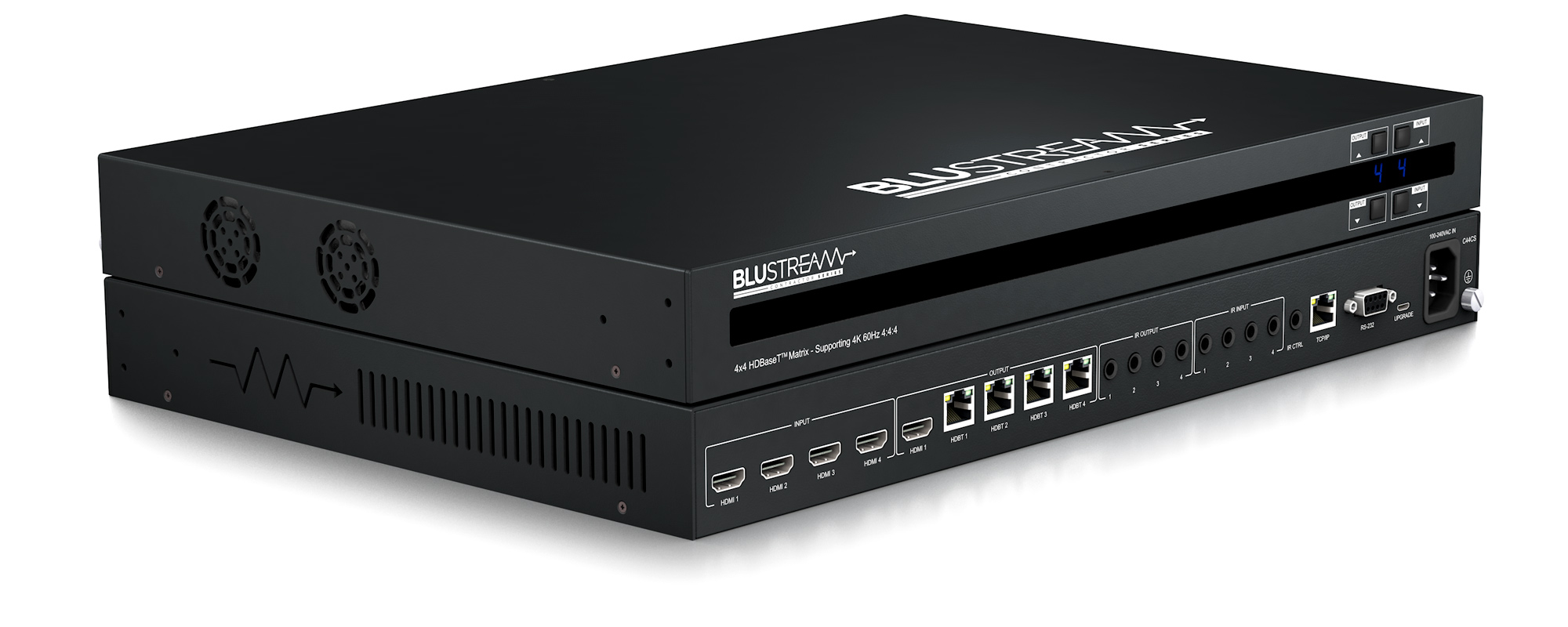

C44CS KIT

Contractor 4x4 HDBT CSC Matrix

Available Colours
Black matt
  • 4x4 HDBaseT CSC Matrix Kit - 70m
  • Supports 4K 60Hz 4:4:4 up to 40m
  • 4x HDMI inputs
  • 4x HDBaseT / 1x HDMI output
  • Bi-directional IR & RS-232
  • Control: front; IR; RS-232; TCP/IP
  • Includes 4 x HDBT Receivers
  • RRP: $3,699.00

Our Contractor 4x4 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market. The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.

The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

The C44CS-KIT is supplied with 4 x RX70CSL receivers.

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
• Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for all major control brands
• 1U design for 19” rack mount integration - mounting kit included
• Advanced EDID management and HDCP 2.2 compliant

*CSC feature compatible with RX70CSL only
