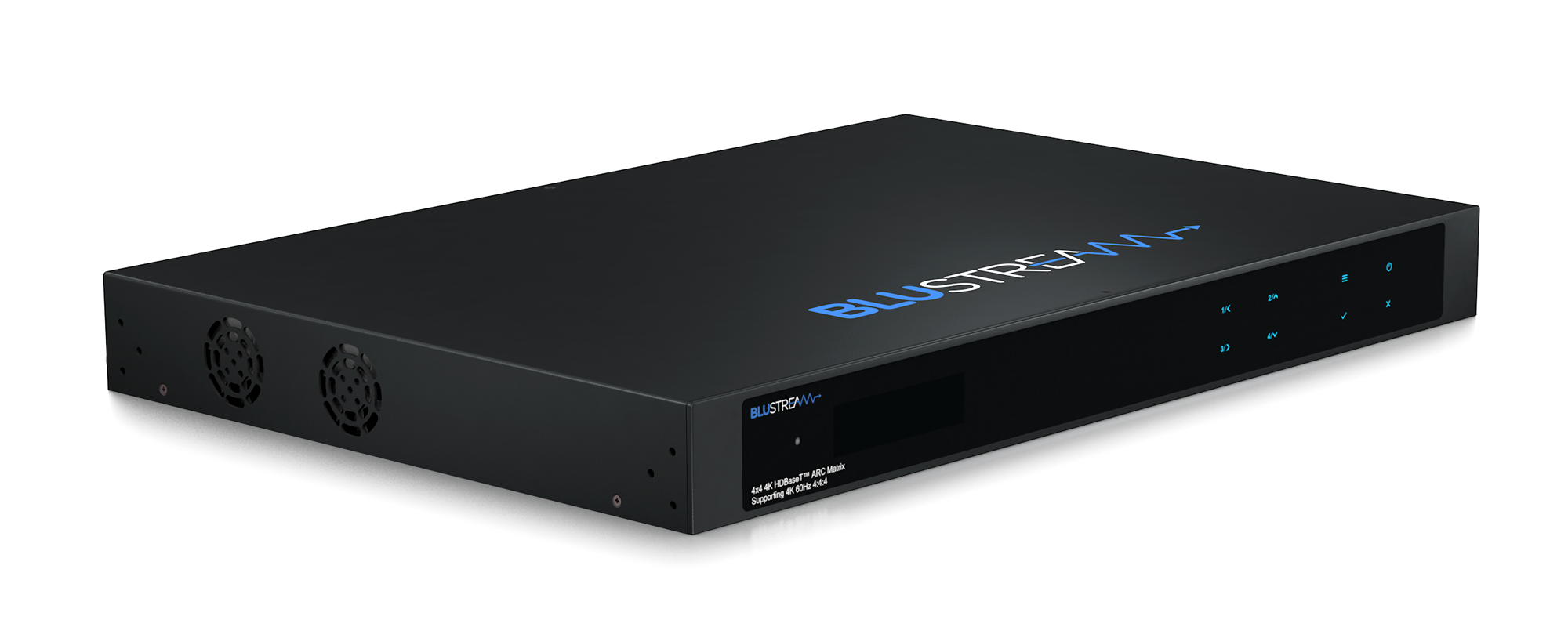

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44ARC is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m (at 1080p) over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs and independent 14x4 audio matrix including Audio Return Channel (ARC). The HMXL44ARC includes in-built web browser interface module for control and configuration of the Matrix and RS-232 and IR pass through to enable seamless 3rd party control integration.
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K • UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
- 4x audio breakout from HDMI source inputs
- 4x audio breakout from zone outputs
- 4x ARC from zone outputs*
- 1x Optical and 1x Analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant
• Supplied with 4x RX70CS HDBaseT Receivers
*ARC feature supports HDMI ARC or Optical ARC
*CSC and ARC Feature compatible with RX70CS only
