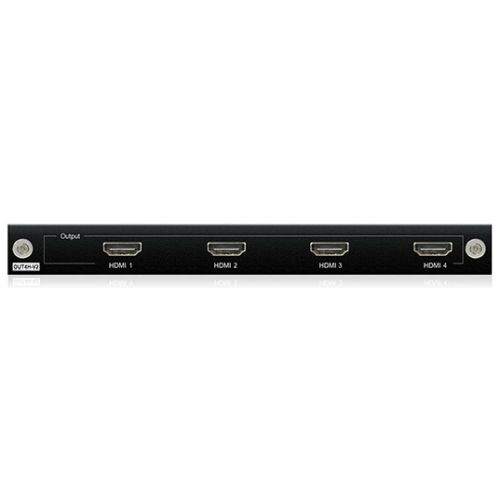

PROOUT4H V2

4-Way HDMI2.0 Output Board, 18Gb

Available Colours
Black matt
  • Custom Pro 4K - Output Board
  • 4-Way HDMI 2.0 Output Board, 18Gbps
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports HDMI 2.0 18Gbps, inc HDR
  • Supports known HDMI audio formats
  • Quick release card module fittings
  • HDCP 2.2 compliant
  • RRP: $919.00

The PRO-OUT4H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to four independent displays.

The PRO-OUT4H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

• Features 4 x HDMI outputs for connection to HDMI displays
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4*
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4H-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board
