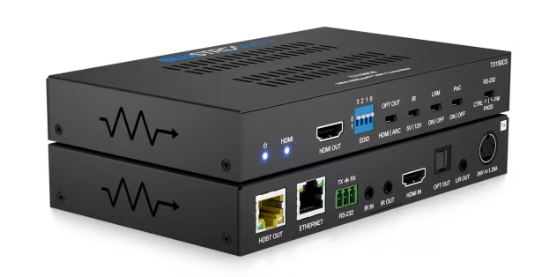

Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The TX150CS is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ transmitter utilising CSC technology.
The TX150CS supports HDMI, Bi-directional IR and PoC up to lengths of 150m over a single CAT cable.
The TX150CS also provides enhanced features including ARC via HDMI or optical (S/PDIF), RS-232 pass through and Ethernet pass through.
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
• Supports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs
(when used with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum matrix solution
• Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Supports bi-directional PoC (Power over Cable) to power extender from either Matrix, transmitter or receiver end
• HDCP 2.2 support
