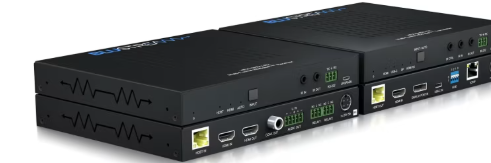

The HEX70HDU-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort at 4K to 40m (with 1080p up to 70m) over a single CAT cable.
The HEX70HDU-KIT provides enhanced features including local HDMI input on the HDBaseT™ receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through.
The HEX70HDU-KIT features control via front panel, IR, RS-232 and TCP/IP, with advanced EDID and HDCP management.
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection
• Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
• Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4, 4K 30Hz 4:4:4 DP1.2
• Audio breakout to analogue L/R audio and Coaxial digital (S/PDIF) outputs concurrently
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Bi-directional IR pass-through
• Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
• Web interface module for control and configuration of HEX70HDU-KIT
• Control via front panel, IR, RS-232 or TCP/IP
• Advanced EDID and HDCP management
*USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device
