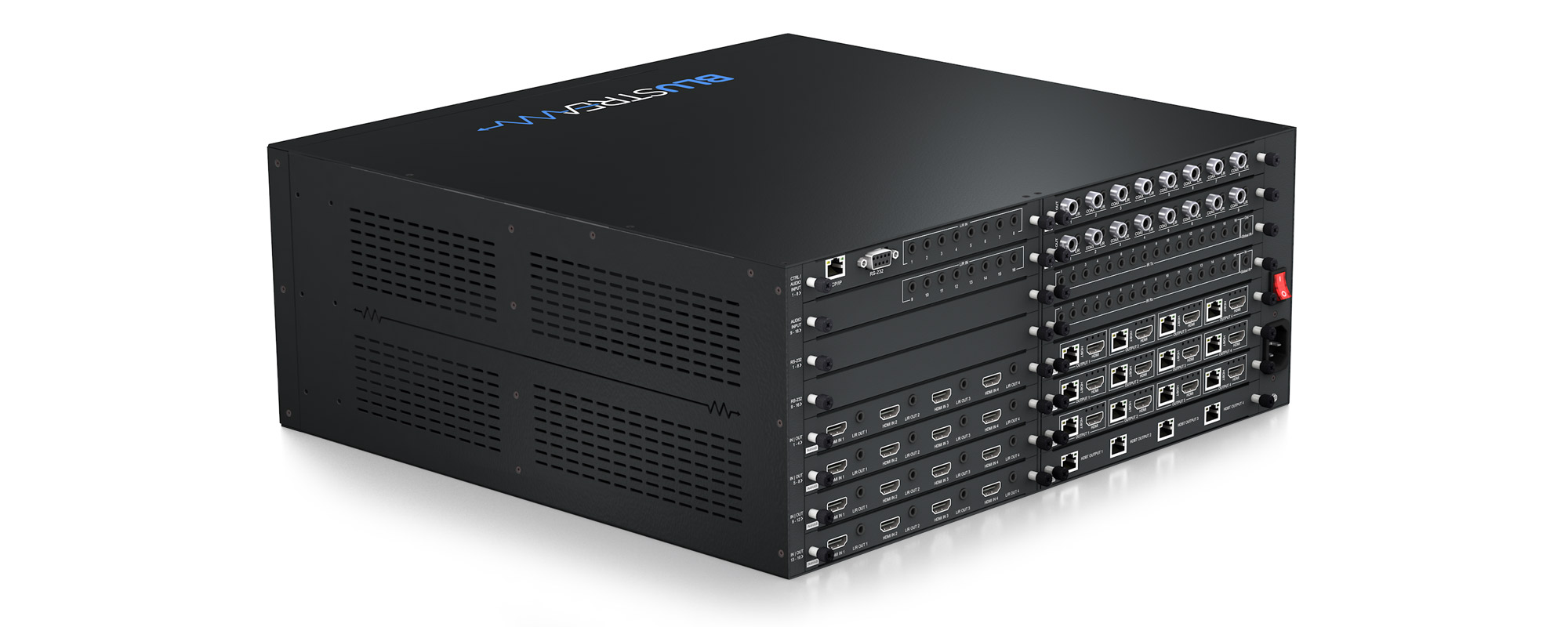

PRO16HDB100

16x16 HDBaseT CSC Matrix - 100m

Available Colours
Black matt
  • 16 x 16 HDBT Matrix - 100m
  • HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.0
  • Bi-directional IR; PoC up to 100m
  • RRP: $21,689.00

The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.

• Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):
   - 1080p@ 60Hz  (for screens that do not support 4K)
   - 4K 60Hz 4:2:0  (for screens that do not support full 4K 60Hz 4:4:4)
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Extend 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
• Audio breakout board with line-level volume control
• Web browser interface for control and configuration of matrix
• Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
• 3rd Party drivers available for major commercial & residential control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Used with Blustream HEX100CS-RX receivers (sold separately)
• Used with Blustream HEX70CS-RX receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately)
