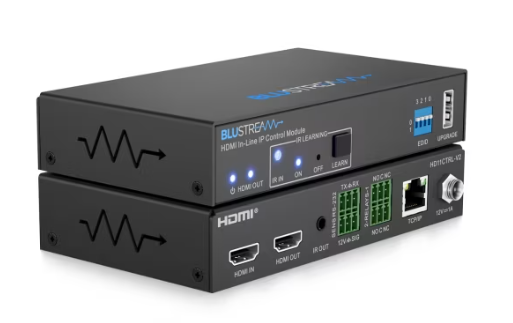

Our HD11CTRL-V2 HDMI in-line controller is a innovative single zone automated control solution. With multiple configuration options, this unit includes RS-232, IR or IP command triggers, display on / off control via CEC, and HDMI signal sensing. External relay inputs allow 3rd party triggers for integration with devices such as sensors or switches. The addition of a web-GUI allows for simple configuration and advanced management and distribution of 3rd party commands and automated processes.
The HD11CTRL-V2 will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can cause problems when distributing HDMI signals, especially 4K.
The HD11CTRL-V2 supports full HDMI 2.0 and HDCP 2.2, with video resolutions up to and including 4K @ 60Hz 4:4:4.
• Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• all known HDMI audio formats to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)
• Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
• Automatic display control via CEC, RS-232, IR or IP
• IR learning up to 30 IR commands
• Relay control for interface to third party devices such as projector screens
• Signal sense input for connection from third party devices such as sensors or switches
• HDCP 2.2 compliant with advanced EDID management
• In-built web-GUI for configuration and control
