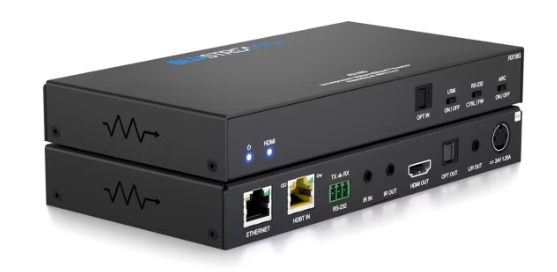

RX18G

18Gbps HDBaseT™ Receiver

Available Colours
Black matt
  • Advanced HDBaseT™ spec 3.0
  • Uncompressed HDMI2.0 18Gbps 4K 60Hz
  • Extends HDMI 1080p video upto 150m
  • Supports ARC
  • Bi-directional IR pass-through
  • Supports PoC
  • HDCP 2.3 support
  • Recommend use HMX88-18G &HMX44-18G
  • RRP: $799.00

The RX18G receiver is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.

The RX18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

The RX18G supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable while also providing enhanced features including ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.

• Advanced HDBaseT™ spec 3.0 technology offering distribution of video and audio over a single CAT6A cable
• Supports uncompressed HDMI2.0 18Gbps 4K 60Hz 4:4:4 specification including HDR
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream matrix)
• Supports ARC when used with compatible Blustream matrix solution
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through from compatible Blustream matrix
• Supports PoC (Power over Cable) from compatible Blustream matrix
• HDCP 2.3 support
• Recommended receiver to be used with Blustream HMX88-18G and HMX44-18G matrix

 *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
