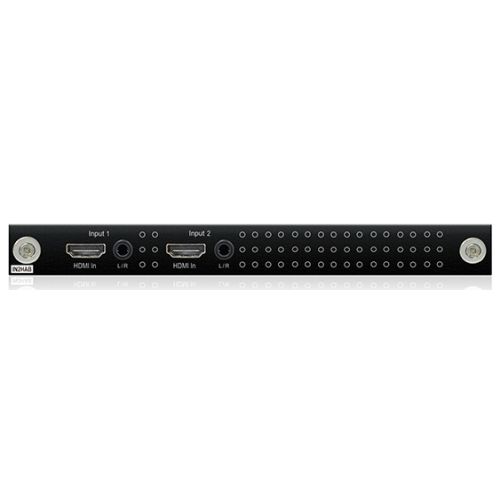

The PRO-IN2HAB board features 2 x HDMI 2.0 inputs supporting 4K 60Hz 4:4:4 that can be independently routed to any HDMI / HDBaseT™ output board. Each HDMI input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
• Features 2 x HDMI 2.0 inputs which can be independently routed to video output cards
• Supports HDMI 2.0 18Gbps specification including HDR support
• Supports up to 4K UHD 60Hz 4:4:4
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Each HDMI input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support
*For HDMI 2.0 18Gbps video distribution the PRO-IN2HAB must be used with a HDMI 2.0 18Gbps Custom Pro output board
