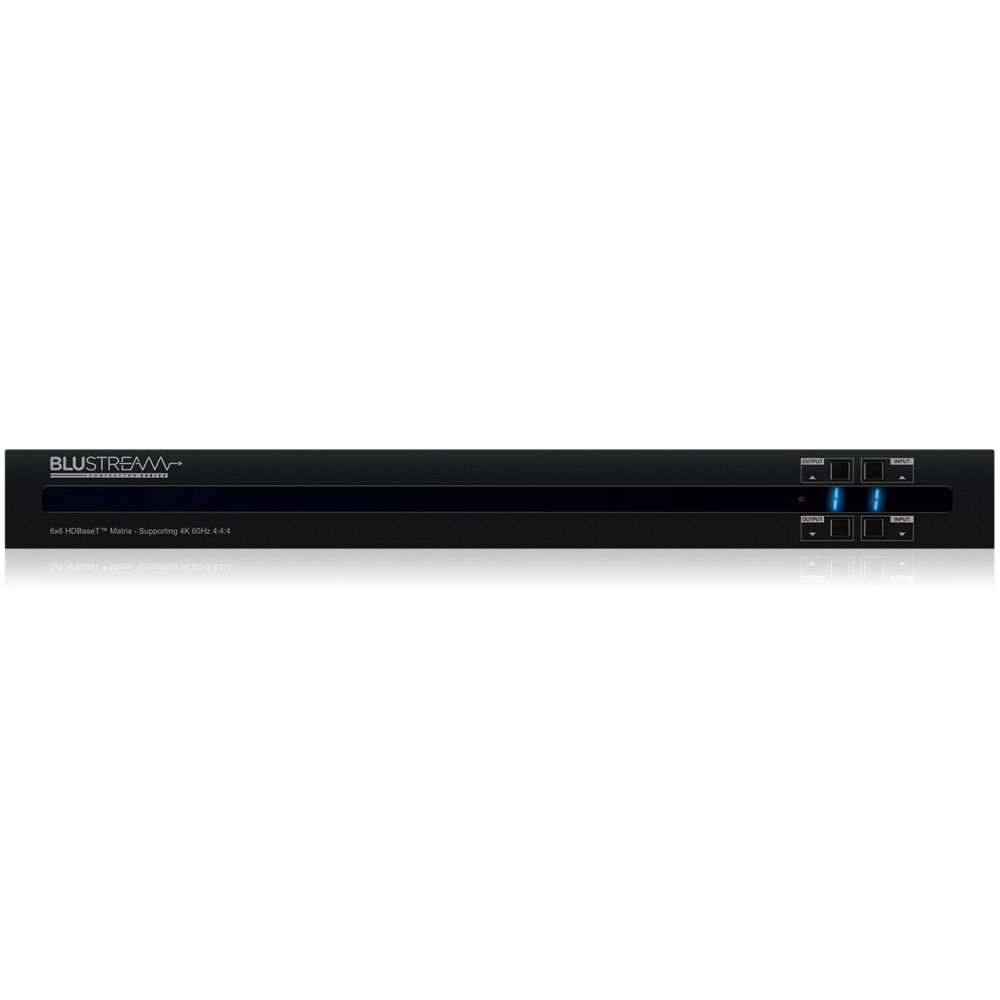

Our Contractor 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for major control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• Recommended receiver: RX70CS (where 18Gbps CSC support is required)
*For 18Gbps CSC support use RX70CS receivers
