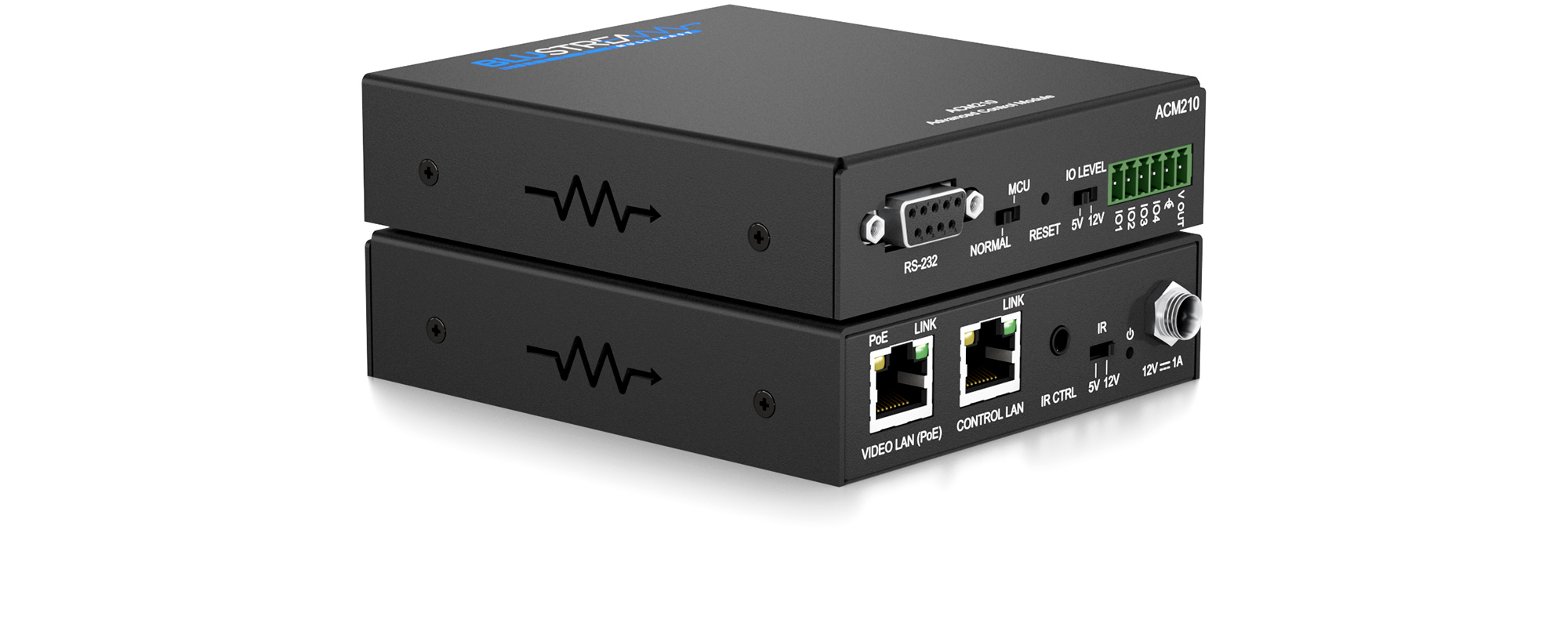

Our UHD Multicast distribution platform allows distribution of HDMI video over a 1Gb managed network. The ACM210 Advanced Control Module allows for advanced third party control of our IP300UHD and IP350UHD Multicast systems using TCP/IP; RS-232 and IR. The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video; audio; IR; RS-232; USB / KVM and CEC. Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
• Web interface module for configuration and control of IP50HD, IP200UHD, IP250UHD, IP300UHD and IP350UHD Blustream Multicast systems
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
• Auto system configuration
• 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
• RS-232 integration for control of Multicast system
• IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should Ethernet switch not support PoE
• Support for iOS and Android App control
• 3rd Party drivers available for major control brands
Please note: Compatible with IP50HD, IP200UHD / IP250UHD, or IP300UHD / IP350UHD systems only. This product ships with firmware for the IP300UHD / IP350UHD system. IP50HD and IP2xxUHD will require a separate firmware at this time. Please contact support when using with these systems for assistance. For IP50HD, IP2xxUHD, IP3xxUHD, and IP500UHD systems are not interoperable.
