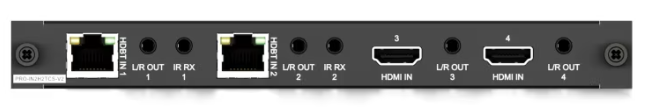

The PRO-IN2H2TCS-V2 board features 2 x HDBaseT™ and 2 x HDMI 2.0 inputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K 70m). The four sources can be independently routed to any HDMI / HDBaseT™ output board. The HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter. Each source input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
• Features 2 x HDMI and 2 x HDBaseT™ inputs which can be independently routed to video output cards
• HDMI and HDBaseT™ inputs support HDMI 2.0 18Gbps specification including up to 4K UHD 60Hz 4:4:4 and HDR resolutions*
• HDBaseT™ inputs support signal distribution up to a distance of 100m @ 1080p (4K 60Hz 4:4:4 UHD @ 70m) when used with a compatible Blustream CSC Transmitter**
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Each HDMI / HDBaseT™ input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
• HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support
*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified. For HDMI 2.0 18Gbps video distribution the PRO-IN2H2TCS-V2 must be used with a Blustream CSC based HDBaseT™ Transmitter
**The PRO-IN2H2TCS-V2 does not support PoC (Power over Cable) to connected Blustream HDBaseT™ Transmitter units. A separate power supply unit must be specified
