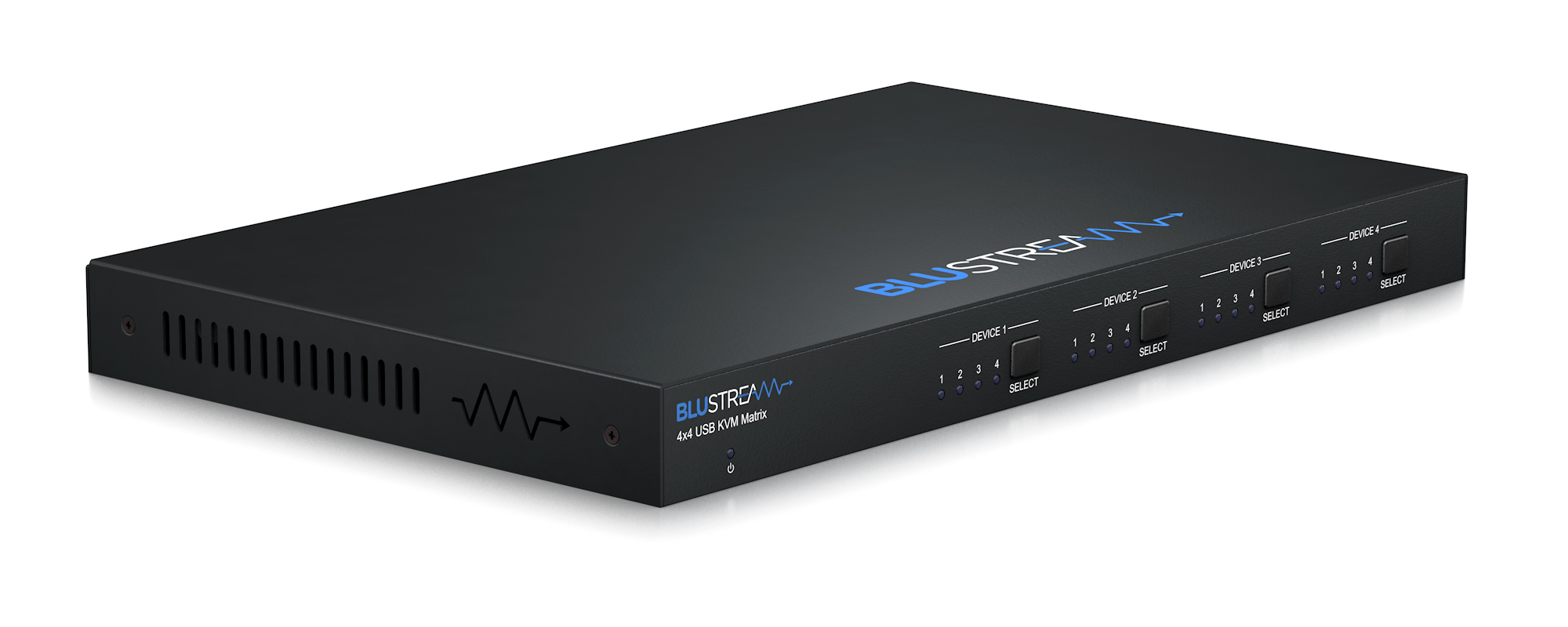

Our 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.
The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.
The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.
An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.
• 4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
• USB 3.0 connectivity with data transfer rates up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Plug-and-play with no drivers, downloads, or software required
• USB-A connections provide 5V / 900mA
• Features 4 x configurable GPIO ports for integration with 3rd party products
• Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
• Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
• Web interface module for control and configuration of the MX44KVM
• Control via front panel, IR, RS-232, and TCP/IP
