Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.

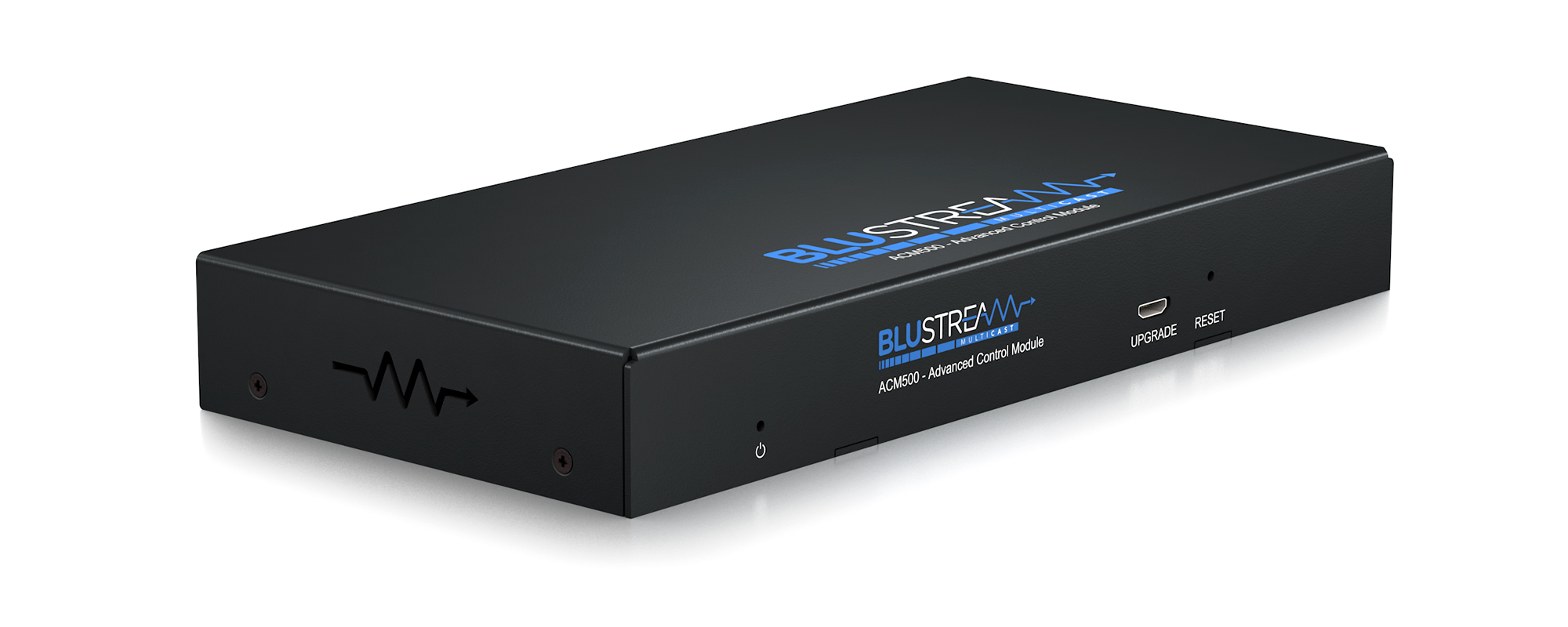

The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag & drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
• Web interface module for configuration and control of Blustream IP500UHD and IP510UHD SDVoE 10GbE Multicast systems
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• Auto system configuration
• 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup is required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
• Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third-party devices
• 5V/12V IR integration for control of the Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should the Ethernet switch not support PoE
• Support for iOS and Android App Control
• 3rd Party drivers available for all major control brands
Please note: Compatible with IP500UHD and IP510UHD only. IP50HD, IP2xxUHD, IP3xxUHD, and IP5xxUHD systems are not interoperable.
