Our SW41AB-V2 is a 4-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Key Features:

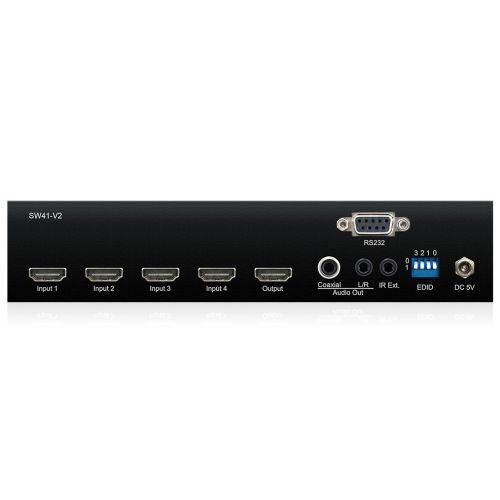

- Features 4x HDMI inputs which can be switched to a single HDMI output *
- Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
- HDCP2.2 compliant
- Supports 3D signal display
- Supports CEC bypass (Consumer Electronics Control)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently

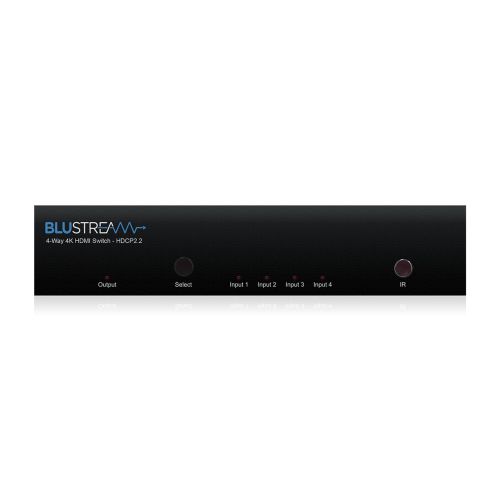

- Control via front panel and IR (remote control included)
- Advanced EDID management
* Please note: this unit is not auto signal sensing / switching
