SW21 V2

2-Way 4K HDMI2.0 HDCP2.2 Switch

Available Colours
Black matt
  • 2-Way 4K HDMI2.0 HDCP2.2 Switch
  • Supports 4K 60Hz 4:4:4

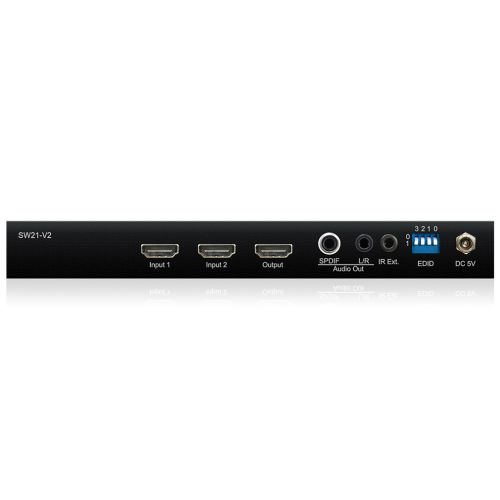

  • 2x HDMI inputs / 1x HDMI output
  • Supports known HDMI audio formats
  • Coaxial & Analog Audio Breakout
  • Supports CEC bypass
  • Advanced EDID management
  • HDCP 2.2 compliant
  • RRP: $279.00

Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Key Features:

  • Features 2x HDMI inputs which can be switched to a single HDMI output *
  • Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
  • HDCP2.2 compliant
  • Supports 3D signal display
  • Supports CEC bypass (Consumer Electronics Control)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently

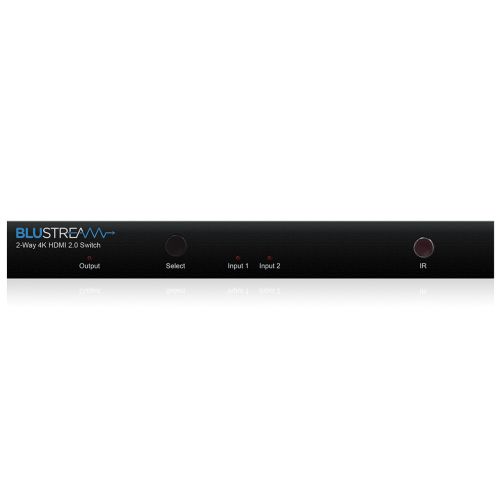

  • Control via front panel and IR (remote control included)
  • Advanced EDID management

* Please note: this unit is not auto signal sensing / switching
